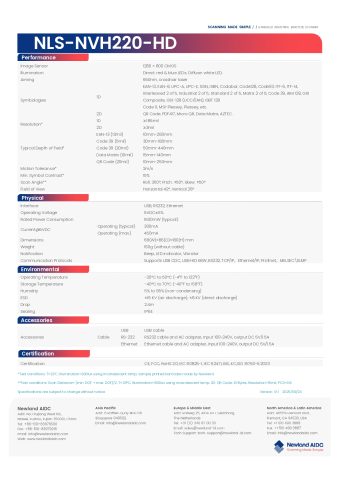

Product Specifications

Image Sensor 1280 × 960 CMOS

Illumination Direct: white & red light LED; Diffuse: Ring of blue LEDs; LED 532nm

2D: QR Code, PDF417, Micro QR, Data Matrix, AZTEC.1D:EAN-13,

EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code128, Code93, Code11,

COOP25, GS1-128(UCC/EAN-128), ITF-6, ITF-14, AIM128, ISBT128,

Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, MSI Plessey,

Code 39, Plessey, Deutsche 14, Deutsche 12.

Resolution ≥3mil

Min. Symbol Contrast 20%

EAN-13(13mil) : 25mm-160mm
Code 39(5mil) : 40mm-100mm
Code 39(20mil) : 35mm-210mm
Data Matrix(10mil) : 0mm-125mm

QR Code(20mil) 20mm-180mm

Scan Angle Roll: 360°, Pitch: ±50°, Skew: ±50°

Dimensions (L×W×H) 67(W)×86(D)×170(H) mm

Weight 165g

Notification Beep, LED indicator, Vibrator

Current operating(typical) : 320mA, operating(max.) : 480mA

Interfaces USB, RS232, PS/2

Operating Temperature -20°C to 50°C(-4°F to 122°F)

Storage Temperature -40°C to 70°C(-40°F to 158°F)

Humidity 5% to 95% (non-condensing)

ESD ±16 KV (air discharge); ±8 KV (direct discharge)

Drop 1.8m

Sealing IP64

Certifications FCC, CE, ROHS, IEC62471, BIS, KC
